Multi-Tube Vortexer,DHM-250

DHM-250
Multi-Tube Vortexer
Speed range: 500~2500rpm, Reciprocating diameter (amplitude): 4mm horizontal rotation.

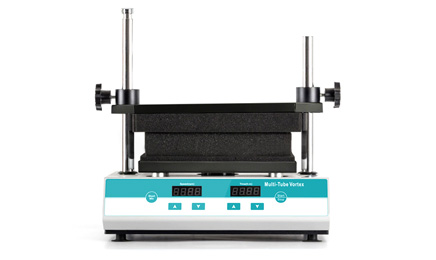

DHM-250 Multi-Tube Vortex Mixer (Digital Multi-Tube Vortex Oscillator) uses a brushless DC motor and microcomputer control technology. Its unique knob operation mode is simple and easy to use. By replacing the fixed sponge for different test tubes, it can be used for mixing and cultivation of various commonly used test tubes, with a maximum capacity of 50 samples at a time. It is suitable for the fields of biotechnology, microbiology, and medical analysis, among others.

Product Introduction
DHM-250 Multi-Tube Vortex Mixer (Digital Multi-Tube Vortex Oscillator) uses a brushless DC motor and microcomputer control technology. Its unique knob operation mode is simple and easy to use. By replacing the fixed sponge for different test tubes, it can be used for mixing and cultivation of various commonly used test tubes, with a maximum capacity of 50 samples at a time. It is suitable for the fields of biotechnology, microbiology, and medical analysis, among others.

Product Introduction

DHM-250 Multi-Tube Vortex Mixer (Digital Multi-Tube Vortex Oscillator) uses a brushless DC motor and microcomputer control technology. Its unique knob operation mode is simple and easy to use. By replacing the fixed sponge for different test tubes, it can be used for mixing and cultivation of various commonly used test tubes, with a maximum capacity of 50 samples at a time. It is suitable for the fields of biotechnology, microbiology, and medical analysis, among others.

Product Features
◆ One-button operation mode for easy use;
◆ Timer can be set from 1 minute to 99 hours 59 minutes, and a beep will sound when the operation is finished;
◆ Multiple sponge tube holders available for versatile use;
◆ Soft start and uniform acceleration effectively prevent sample splashing;
◆ Brushless DC motor drive for accurate speed, long life, and maintenance-free operation;
◆ Can handle up to 50 test samples at once for efficient and fast experiments;
◆ Simple operation panel, precise control by microprocessor, with LED real-time display of speed and time;
◆ User-friendly program design with built-in jog and timing modes.

Technical Parameters
Model:	DHM-250
Rotation speed range:	500~2500rpm
Orbit diameter (amplitude):	4mm horizontal orbit
Input power:	60W
Dimensions:	410276432mm (LWH)
Time setting:	1min ~ 99h59min
Max. loading capacity:	4.5kg
Input voltage:	AC100-240V 50-60Hz
Weight:	20kg

Tube Rack Model Selection
Model	Specification	Applicable Tube Diameter
DHM-200-T10	50xΦ10mm	Φ9~Φ10mm
DHM-200-T12	50xΦ12mm	Φ11~Φ13mm
DHM-200-T15	50xΦ15mm	Φ14~Φ17mm
DHM-200-T20	50xΦ20mm	Φ18~Φ21mm
DHM-200-T25	15xΦ25mm	Φ24~Φ27mm
DHM-200-T29	15xΦ29mm	Φ28~Φ32mm
Other Customized Specifications	Customizable	Customizable

Single Page - Color Page
Name:	Author:	Action:
Multi-Tube Vortexer DHM-250	Vortexer	Download

Product List

DHM-250	Unit
Host Machine	Unit
Special Test Tube Rack	Piece
Power cord	piece
User manual	copy
Warranty card	copy
Certificate of qualification	copy

Description: 1; 1; 1; 1; 1; 1
