  • Infrared-Sterilizer
  • Highest temperature in the central zone: 825℃±50℃, maximum disinfection outer diameter: Φ35.

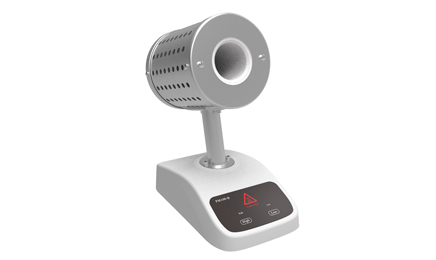

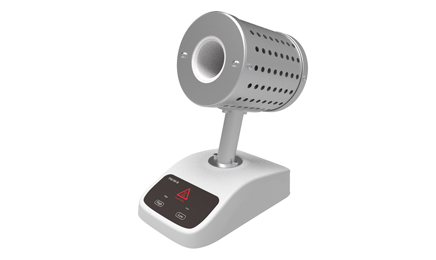

Infrared-Sterilizer DH-35B is an instrument that uses a heating wire to heat the ceramic and uses high-temperature thermal energy for disinfection.
Product Introduction
DH-35B Infrared-Sterilizer is an instrument that uses ceramic heating by heating wire and high-temperature thermal energy for sterilization. It is convenient to use, easy to operate, has no open flame, is not affected by wind, and is safe to use. It can be widely used in microbiological experiments in environments such as biosafety cabinets, purification workbenches, fume hoods, and mobile carts, and can replace alcohol lamps. It achieves a one-time disinfection effect on inoculation rings, inoculation needles, scissors, forceps, and other tools.


Product Features
◆Uses full-touch screen control and rear projection display technology, easy to operate.
◆Completely replaces alcohol lamps, not affected by safety cabinets/anaerobic chambers, and convenient for sterilizing inoculating loops or needles.
◆The center temperature can reach above 850°C, which can ash microorganisms or bacterial strains.
◆Short sterilization time, 5-7 seconds can achieve sterilization effect.
◆Uses ceramic material to prevent contagious splashing and cross-contamination.
◆Equipped with high and low temperature levels for users to switch flexibly.
◆Equipped with high temperature flicker prompt function.


Technical Specifications
Model: DH-35B
Product number: PM100-B
Maximum temperature in the central area: 825℃±50℃
Maximum sterilization diameter: Φ35
Total length of the heating area: 100 mm
Power supply power: 320 W
Heating temperature: High/low temperature 400/825℃
Rising time: 5-10 min
Ambient temperature: 0-45℃
Applicable humidity: ≤85%
Dimensions: 157*92*215 (H) mm
Net weight: 0.94 kg




Single Page - Color Page
Name: Author: Action:
Infrared-Sterilizer    DH-35B Sterilizer Download





Product List
DH-35B Unit
Host Machine Unit
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
1
1
