DH88-IIN

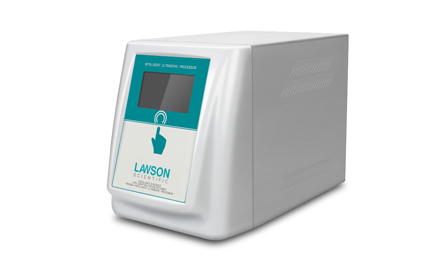

Ultrasonic Disruptor
Power 250W, Crushing Capacity 10-200ml

Ultrasonic Disruptor DH88-IIN, is a multifunctional and versatile instrument that utilizes strong ultrasound to generate cavitation effects in liquids and carry out ultrasonic processing of materials. It can be used for the disruption of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, defoaming, cleaning, and acceleration of chemical reactions, among others.

Product Introduction
Ultrasonic Disruptor DH88-IIN, is a multifunctional and versatile instrument that utilizes strong ultrasound to generate cavitation effects in liquids and carry out ultrasonic processing of materials. It can be used for the disruption of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, defoaming, cleaning, and acceleration of chemical reactions, among others.

Product Introduction

Product Features
◆Used for the crushing of animal and plant cells, bacteria, spores or tissues, extracting proteins from cells, and conducting scientific cultivation experiments of viruses and vaccines.
◆Accelerates the reaction rate of chemical and physical reactions, and accelerates liquid degassing.
◆Used for scientific research analysis, such as dilution of crude oil, oil-water emulsification, accelerated decrystallization, glass pulp homogenization, etc.
◆Disperses rare earth minerals, various inorganic minerals, and prepares homogenized mixtures of latex particles with near-nanometer sizes.
◆Quickly and strongly washes fluids in mold microholes and blind holes.

Experimental Objectives
1. Understand the basic principles of ultrasonic cell crushing.
2. Master the basic techniques of ultrasonic cell crushing.

Experimental Principle
When strong sound waves act on a solution, the cavitation phenomenon of bubble formation, growth, and rupture is caused. The shock waves and shear forces caused by cavitation lead to the lysis of cells.

Materials and Reagents
10ml bacterial culture, beaker, ice shaver, 75% alcohol cotton ball.

Technical Parameters
Model:	DH88-IIN
Frequency:	20-25KHz
Power:	250W
Standard Amplitude Bar:	Φ6
Optional Amplitude Bars:	Φ2, 3
Crushing Capacity:	0.5-200ml
Duty Cycle:	1-99%
Power Supply:	220/110V 50Hz/60Hz
Power Supply Chassis Dimensions:	400×280×220mm
Net Weight:	12.1kg
Mainframe + Transducer Weight:	14kg
Outer Package Dimensions:	534×295×435mm

Probe Model Selection
Model	Cell Disruption Capacity
Φ2mm	150ul－5ml
Φ3mm	200ul－10ml
Φ6mm	10ml－200ml

Single Page - Color Page
Name:	Author:	Action:
Ultrasonic Disruptor DH88-IIN	ultrasonic	Download

Product List

DH88-IIN	Unit
Host Machine	Unit
Vibration System (Transducer Assembly)	Set
Soundproof box	set
Cross clamp (inside the soundproof box)	piece
Test tube clamp (inside the soundproof box)	piece
Special Wrench (used for disassembling the amplitu	Set
Fuses	piece
Power cord	piece
User manual	copy
Warranty card	copy
Certificate of qualification	copy

Description: 1; 1; 1; 1; 1; 1; 8A, 5A each 2; 1; 1; 1; 1
