VC50
SONICS Ultrasonic Homogenizer
Power 50W, standard amplitude rod handling capacity 0.5ml to 15ml.

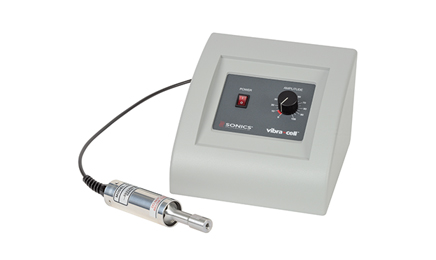

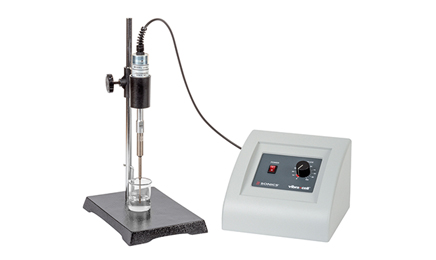

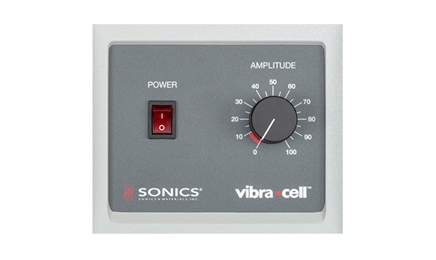

SONICS Ultrasonic Homogenizer VC 50 is a small and compact 50-watt ultrasonic processor. The ultrasonic energy can be activated by gripping the probe and turning the amplitude knob on the front panel. It includes a 1/8" probe (0.5-15mL volume) and offers various accessories for different applications and sample volumes.

Product Introduction
SONICS Ultrasonic Homogenizer VC 50 is a small and compact 50-watt ultrasonic processor. The ultrasonic energy can be activated by gripping the probe and turning the amplitude knob on the front panel. It includes a 1/8" probe (0.5-15mL volume) and offers various accessories for different applications and sample volumes.

Product Features
◆Compact design
◆Adjustable power output
◆Low cost

Experimental Objectives
1. Understand the basic principles of ultrasonic cell disruption.
2. Master the basic techniques of ultrasonic cell disruption.

Principle of Experiment
When strong sound waves act on a solution, the cavitation phenomenon of bubble generation, growth, and rupture is related. The shock waves and shear forces caused by cavitation phenomenon cause cell lysis.
Materials and Reagents 10ml bacteria, beaker, crushed ice, 75% alcohol cotton ball.

Technical Specifications
Model:	VC 50
Frequency:	20KHz
Power:	50W
Transducer model:	CV18
Standard amplitude probe:	Φ3mm
Standard amplitude probe length:	138mm
Amplitude probe material:	Titanium alloy Ti-6Al-4V
Standard amplitude probe processing capacity:	0.5ml to 15ml
Optional amplitude probe:	Φ2mm
Amplitude probe cable length:	1.5m
Duty cycle:	1-99%
Power adjustment range:	Continuously adjustable (5-50w)
Operating frequency range:	Energy monitor digital wattmeter automatic tuning automatic amplitude compensation
Power supply:	220/110V 50Hz/60Hz or 117V, 50/60Hz if not otherwise specified
Net weight:	2.9kg
Size:	H x W x D: 8 x 8 x 5 inches (203 x 203 x 127mm)

Brochures
VC 50 Single Page Brochure
VC 50 User Manual
Sonics Comprehensive Brochure
Related Accessories
Other Accessories

Product List

VC50	Unit
Host Machine	Unit
Toolbox	set
Power cord	piece
Soundproof box	set
Special Crushing Cup	Piece
User manual	copy

Description: 1; 1; 1; Optional; Optional; 1
