• SONICS Ultrasonic Continuous Flow Cell Crusher
  • VCX1500HV
  • Power: 1500W, Standard amplitude bar processing capacity: 100L per hour.
  • VCX1500HV
  • SONICS Ultrasonic Continuous Flow Cell Crusher
  • Power: 1500W, Standard amplitude bar processing capacity: 100L per hour.

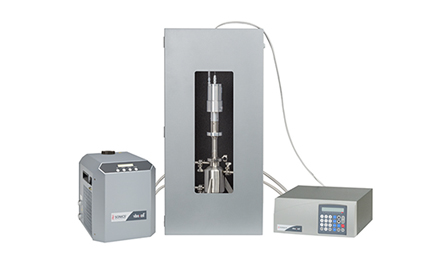

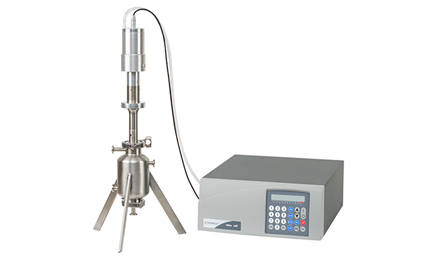

VCX1500HV is an ultrasonic continuous flow cell disruptor that has a power output of 1500W and a large capacity continuous flow cell. The typical production rate is 100 liters per hour, varying depending on viscosity and desired degree of processing. It is mainly used for industrial mixing, including large-scale processing of nanomaterials, and industrial processing, including emulsification, degassing, and large-scale dispersion. The flow cell is easily removable for inspection and cleaning, and is water-jacketed to cool/heat the sample during processing.
Product Introduction
VCX1500HV is an ultrasonic continuous flow cell disruptor that has a power output of 1500W and a large capacity continuous flow cell. The typical production rate is 100 liters per hour, varying depending on viscosity and desired degree of processing. It is mainly used for industrial mixing, including large-scale processing of nanomaterials, and industrial processing, including emulsification, degassing, and large-scale dispersion. The flow cell is easily removable for inspection and cleaning, and is water-jacketed to cool/heat the sample during processing.


Product Features
◆ Based on a flow rate of more than 20 liters
◆ Energy and temperature set point control
◆ Automatic tuning

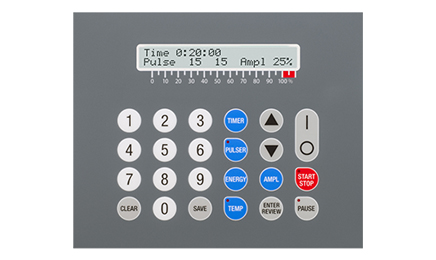

◆ Digital power meter
◆ Full-featured process timer
◆ Remote processing capability


Technical Parameters
Model: VCX 1500HV
Frequency: 20KHz
Power: 1500W
Standard Amplitude Bar: Φ25mm
Standard Amplitude Bar Length: 230mm
Standard Amplitude Bar Processing Capacity: 100L per hour
Overall Dimension of Amplitude Bar: 178 x 380 x 463.5 mm
Material of Amplitude Bar: Ti-6Al-4V titanium alloy
Optional Amplitude Bar: Φ25mm
Weight of Amplitude Bar: 1600g
Length of Amplitude Bar Cable: 3m
Indoor Liquid Volume: 500ml
Operating Pressure: up to 50ps
Duty Cycle: 1-99%
Power Adjustment Range: Continuous and adjustable (15-1500w)
Gap Time: 0.1-99.9s
Temperature Protection Setting: Yes
Power Amplitude Display: Yes
Operating Mode: Gap/Continuous
Power Supply: 220/110V 50Hz/60Hz or 117V, 50/60Hz unless otherwise specified
Net weight: 9.5kg
Weight of host and transducer: 10.68kg
Product List
VCX1500HV Unit
Host Machine Unit
Alternative Solid Probe for Large Capacity Continu Piece
Large capacity continuous circulation pool set
Power cord piece
User manual copy
Description
1
1
1
1
1
