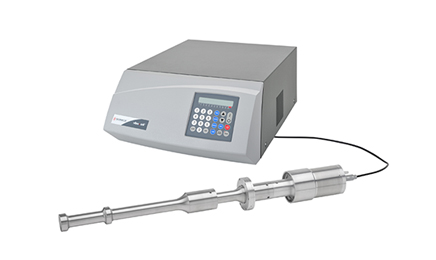

VCX2500
SONICS Ultrasonic Homogenizer
Power 2500W, standard amplitude rod processing capacity of 50L or more per batch.

SONICS Ultrasonic Homogenizer VCX2500: Air-cooled converter capable of batch processing up to 50 liters. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).

Product Introduction
SONICS Ultrasonic Homogenizer VCX2500: Air-cooled converter capable of batch processing up to 50 liters. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).

产品特点
◆Batch size up to 50 liters
◆Energy and temperature set point control
◆Automatic tuning
◆Digital wattmeter
◆Full-function process timer
◆Variable power output control

Technical Parameters
Model:	VCX 2500
Frequency:	20KHz
Power:	2500W
Standard Horn:	Φ38mm
Standard Horn Length:	370mm
Standard Horn Processing Capacity:	Each batch up to 50L
Horn Overall Dimension:	240 x 445 x 711 mm
Horn Material:	Titanium alloy Ti-6Al-4V
Optional Horn:	Φ25mm, Φ38mm
Horn Weight:	816g
Horn Cable Length:	3m
Duty Cycle:	1-99%
Power Adjusting Range:	Continuously adjustable (25-2500w)
Gap Time:	0.1-99.9s
Temperature Protection Setting:	Yes
Power Amplitude Display:	Yes
Operating Mode:	Gap/Continuous
Power Supply:	220/110V 50Hz/60Hz or unless otherwise specified, power requirements are 117V, 50/60Hz
Mainframe + Converter Weight:	21.8kg

Brochures
VCX 2500 Single Page
VCX 2500 User Manual
Sonics Comprehensive Brochure
Related Accessories
Other Accessories

Product List

VCX2500	Unit
Host Machine	Unit
Power cord	piece
Support Bracket	Set
Temperature sensor	piece
User manual	copy

Description: 1; 1; Optional; Optional; 1
