• Multi-Element Probes Ultrasonic Processor
  • DH4S-1000
  • Power: 1000W, crushing capacity: 10-150ml * 4 samples.
  • DH4S-1000
  • Multi-Element Probes Ultrasonic Processor
  • Power: 1000W, crushing capacity: 10-150ml * 4 samples.

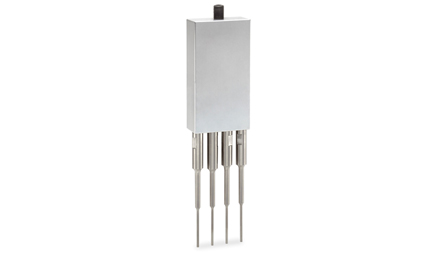

Four-channel Ultrasonic Processor, DH4S-1000 innovative custom 4-channel amplitude probe, can process 4 samples simultaneously, ensuring sample uniformity and greatly improving experimental efficiency.
Product Introduction
DH4S-1000 is a four-channel ultrasonic cell disruptor with an innovative customized 4-channel amplitude probe, capable of processing 4 samples simultaneously. This instrument ensures sample uniformity and significantly improves experimental efficiency. By utilizing the cavitation effect of strong ultrasound in liquids, this multifunctional and versatile instrument can be used for the disruption of various animal and plant cells as well as viral cells. It can also be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions, among other applications. It is widely used in the fields of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, and zoology.


Product Features
◆Used for crushing animal and plant cells, bacteria, spores, or tissue, extracting proteins from cells, and conducting scientific culture experiments of viruses and vaccines.
◆Accelerates the reaction rate of chemical, physical, and other processes, and speeds up liquid dehydration.
◆Used for scientific research analysis of crude oil dilution, oil-water emulsification, accelerating decrystallization, glass homogenization, and more.
◆Disperses rare earths, various inorganic minerals, and prepares homogenized mixtures of latex particles close to nanometer scale.
◆Used for quickly and powerfully cleaning fluids from mold micropores and blind holes with high precision.


Experimental Objectives
1. Understand the basic principles of ultrasonic cell disruption.
2. Master the basic techniques of ultrasonic cell disruption.


Experimental Principle
When strong sound waves act on a solution, the phenomenon of bubble generation, growth, and rupture is related to cavitation. The shock waves and shear forces caused by cavitation cause cell lysis.


Materials and Reagents
10 mL bacteria, beaker, ice shavings, 75% alcohol cotton ball.


Technical Parameters
Model: DH4S-1000
Frequency: 20-25KHz automatic tracking
Power: 1000W
Random amplitude rod: Φ6*4 pcs
Optional amplitude rod: Φ3*4 pcs
Breaking capacity: 10-150ml*4 samples
Temperature alarm range: 0-100℃
Protection function: Over-temperature, Over-power, Over-time
Duty ratio: 1-99%
Power supply: 220/110V 50Hz/60Hz
Power supply box size: 400×280×220mm
Net weight: 12.1kg
Main unit + transducer weight: 16kg
Outer packaging size: 534×295×435mm


Probe Model Selection
Model Cell Disruption Capacity
Φ2mm 150ul-5ml
Φ3mm 200ul-10ml
Φ6mm 10ml-150ml
Product List
DH4S-1000 Unit
Host Machine Unit
Vibration System (Transducer Assembly) Set
Special Wrench (used for disassembling the amplitu Set
Fuses piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
8A, 5A each 2
1
1
1
1
