• Multi Probe ultrasonic homogenizer
  • DH16S-3000
  • Power 3000W, crushing capacity 10-150ml per 16 samples.
  • DH16S-3000
  • Multi Probe ultrasonic homogenizer
  • Power 3000W, crushing capacity 10-150ml per 16 samples.

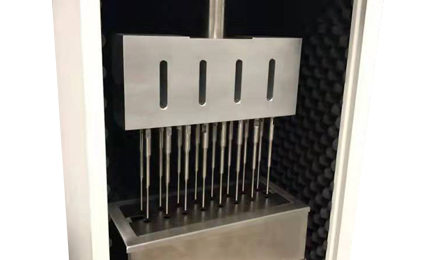

DH16S-3000 Multi Probe ultrasonic homogenizer with a variable amplitude probe, capable of simultaneously processing 16 samples, ensuring sample homogeneity and greatly improving experimental efficiency.
Product Introduction
DH16S-3000 Multi Probe ultrasonic homogenizer with a variable amplitude probe, capable of simultaneously processing 16 samples, ensuring sample homogeneity and greatly improving experimental efficiency.


Product Features
◆Used for crushing animal and plant cells, bacteria, spores, or tissue, extracting proteins from cells, and conducting scientific culture experiments of viruses and vaccines.
◆Accelerates the reaction rate of chemical, physical, and other processes, and speeds up liquid dehydration.
◆Used for scientific research analysis of crude oil dilution, oil-water emulsification, accelerating decrystallization, glass homogenization, and more.
◆Disperses rare earths, various inorganic minerals, and prepares homogenized mixtures of latex particles close to nanometer scale.
◆Used for quickly and powerfully cleaning fluids from mold micropores and blind holes with high precision.


Experimental Objectives
1. Understand the basic principles of ultrasonic cell disruption.
2. Master the basic techniques of ultrasonic cell disruption.


Experimental Principle
When strong sound waves act on a solution, the phenomenon of bubble generation, growth, and rupture is related to cavitation. The shock waves and shear forces caused by cavitation cause cell lysis.


Materials and Reagents
10 mL bacteria, beaker, ice shavings, 75% alcohol cotton ball.


Technical parameters
Model: DH16S-3000
Frequency: 20-25KHz automatic tracking
Power: 3000W
Random amplitude rod: Φ6*16 supports
Optional amplitude rod: Φ3*16 supports
Crushing capacity: 10-150ml*16 samples
Temperature alarm range: 0-100℃
Protection function: Over-temperature, over-power, over-time
Duty cycle: 1-99%
Power supply: 220/110V 50Hz/60Hz
Power supply chassis size: 400×280×220mm
Net weight: 12.1kg
Main machine + transducer weight: 22kg
Outer packaging size: 534×295×435mm

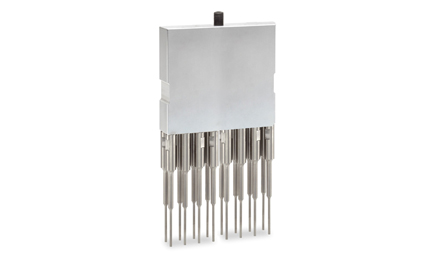

Probe Model Selection
Model Cell Disruption Capacity
Φ2mm 150ul-5ml
Φ3mm 200ul-10ml
Φ6mm 10ml-150ml
Product List
DH16S-3000 Unit
Host Machine Unit
Vibration System (Transducer Assembly) Set
Special Wrench (used for disassembling the amplitu Set
Fuses piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
8A, 5A each 2
1
1
1
1
