• Handheld electric tissue homogenizer
  • DH-S10
  • DH-S10
  • Handheld electric tissue homogenizer
  • Suitable for mixing, emulsifying, and homogenizing of liquid phases, dispersion of solid powders in liquids, and crushing and homogenizing of animal tissues.

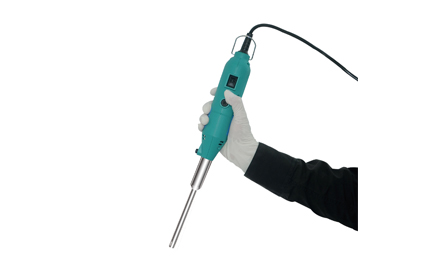

DH-S10 hand-held electric tissue homogenizer (also known as high-speed homogenizer) is suitable for mixing, emulsifying, and homogenizing liquids, dispersing solid powders in liquids, and crushing and homogenizing animal tissues. This machine produces a powerful hydraulic shear effect through high-speed shearing and dispersion, which sucks material from the bottom of the rotor and shapes it through stator injection, conforming to ergonomics and suitable for handheld operation and free movement. The minimum processing volume can reach 0.2ml, and it is specially developed for tissue homogenization, medical diagnosis, quality inspection and testing, trace dispersion, emulsification, and homogenization. It is an ideal equipment for pre-processing trace samples.
Product Introduction
DH-S10 handheld electric tissue homogenizer (also known as high-speed homogenizer) is suitable for mixing, emulsifying, and homogenizing liquids, dispersing solid powders in liquids, and crushing and homogenizing animal tissues. The machine uses high-speed cutting and dispersion to generate a powerful hydraulic shear effect, allowing materials to be sucked in from the bottom of the rotor and sprayed out through the stator. The machine is ergonomically designed for handheld operation and easy movement. It can handle a minimum processing volume of 0.2ml and is specifically developed for tissue crushing, medical diagnosis, quality inspection, trace dispersion, emulsification, and homogenization. It is an ideal device for sample pretreatment of small volumes.


Technical Parameters
Model: DH-S10
Voltage: 220V/50Hz
Speed: 5000-35000rpm
Speed Display: Numeric display
Speed Control: 7-speed infinitely variable speed control
Random configuration of working heads: 10mm/8mm/6mm
Processing volume: 5ml-250ml
Weight: 1.2 Kg
Dimensions: 420×245×340mm




Single Page - Color Page
Name: Author: Action:
Handheld electric tissue homogenizer   DH-S10 homogenizer Download





Product List
DH-S10 Unit
Host Machine Unit
Accessories set
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
Workbench, Cutting tools
1
1
1
