Mini-100T
mini dry metal bath
Temperature control range: room temperature +5℃ to 100℃ (circular)

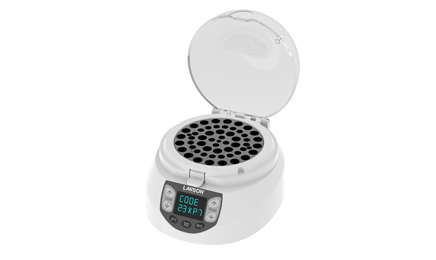

Mini-100T round mini dry metal bath adopts microcomputer control and uses high-purity aluminum material as the thermal medium to replace traditional water bath devices. It is characterized by convenient use, wide temperature control range, and high precision. It can be widely used in various biochemical sample constant temperature incubation processes such as sample preservation and reaction, pre-denaturation of DNA amplification and electrophoresis, serum coagulation, etc. One-click setting of 37℃ and 95℃ is available.

Product Features
• Fast heating rate, uniform heating, accurate temperature control, high stability, and low energy consumption.
• Built-in temperature deviation calibration function, automatic fault detection, and buzzer alarm function.
• Built-in over-temperature protection device for safer and more reliable use, and longer machine service life.
• The product is designed to be compact and tight, with a small space occupation range, and a transparent machine cover to reduce experimental errors.
• Can be set for continuous operation without time limit.

Technical Specifications
Model:	Mini-100T
Temperature Control Range:	Ambient temperature +5℃ to 100℃
Timing Range:	1 to 99h59min/∞
Temperature Control Accuracy:	≤±0.3℃ (@37℃)
Temperature Display Accuracy:	0.1℃
Heating Time:	≤15min (20℃ to 100℃)
Temperature Uniformity:	≤±0.5℃ (conventional) ≤±0.3℃ (@37℃)
Number of Modules:	1
Power Supply Voltage:	AC110 or 220V/50-60HZ
Maximum Power:	150W
Product Size:	160190130 mm
Product Weight:	1.5 kg

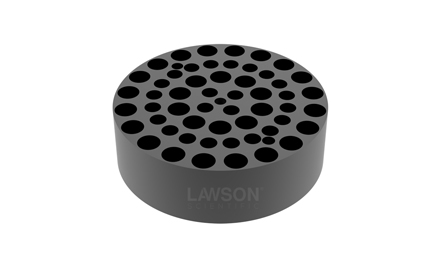

Module Model Selection
Model	Test Tube Diameter	Test Tube Specification	Module Size	Bottom Shape of Hole
MY-A	6.1mm	0.2ml*96	φ104.5*32mm	Cone Bottom
MY-B	8mm	0.5ml*59	φ104.5*32mm	Cone Bottom
MY-C	10.8mm	1.5ml*39	φ104.5*32mm	Cone Bottom
MY-D	10.8mm	2.0ml*39	φ104.5*32mm	Round Bottom
MY-E	13.5mm	5.0ml*18	φ104.5*32mm	Round Bottom
MY-F	8mm/10.8mmmm	0.5ml24+1.5ml30	φ104.5*32mm	Cone Bottom
MY-G	6.5mm	6mm*59	φ104.5*32mm	Round Bottom
MY-X	Customizable for Other Specifications	/	/	/

Single Page - Color Page
Name:	Author:	Action:
mini dry metal bath Mini-100T	dry_bath	Download

Product List

Mini-100T	Unit
Host Machine	Unit
Metal module	piece
Special Screwdriver (used for disassembling the mo	Piece
Power cord	piece
User manual	copy
Warranty card	copy
Certificate of qualification	copy

Description: 1; 1; 1; 1; 1; 1
